Double Roller Cotton Ginning Machine
Product Details:
Product Description
Double Roller Cotton Ginning Machine
By keeping in track with the current market developments, we provide Double Roller Cotton Ginning Machine. This machine is designed and fabricated by our professionals using supreme class components in compliance with the international quality standards. The range is appreciated for its superior quality, operational fluency, low running cost and longer functional life. These Machine is available in different technical specifications as per the application requirements of the clients.

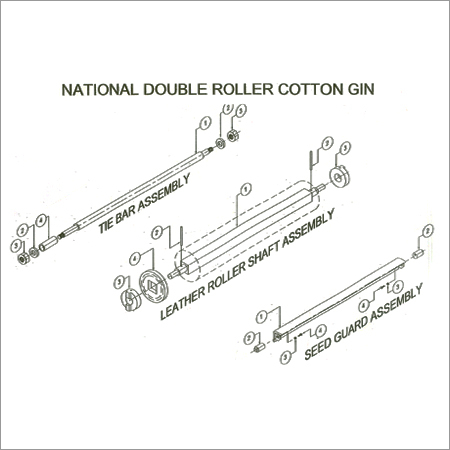

| Sr. No | Part No. | Description | |
| Extra Long Model | Jumbo Model | ||
| 1 | EL 117 | 117 | M.S Main tie bar |
| 2 | 15 | 15 | Plain washer-1 |
| 3 | 16 | 16 | Hex. Nut-1 |
| 4 | 120 | 120 | C.I distance bush for tie bar |
Leather roller shaft assembly
| Sr. No | Part No. | Description | |
| Extra Long Model | Jumbo Model | ||
| 1 | EL 118 | 118 | Square leather roller shaft |
| 2 | 122 | 122 | Straight pin for shaft and flanges |
| 3 | 121 | 121 | Leather roller flange |
| 4 | 130 | 130 | Chrome washer for roller |
Seed Guard Assembly
| Sr. No | Part No. | Description | |
| Extra Long Model | Jumbo Model | ||
| 1 | EL 119 | 119 | Fabricated M.S seed guard |
| 2 | 123 | 123 | M.S Pin for seed guard |
| 3 | 48 | 48 | Hex. Nut-3/8 |
| 4 | 60 | 60 | Hex. Head bolt-3/8x1-1/2 long |
