Off Side Frame Assembly
Product Details:
Product Description

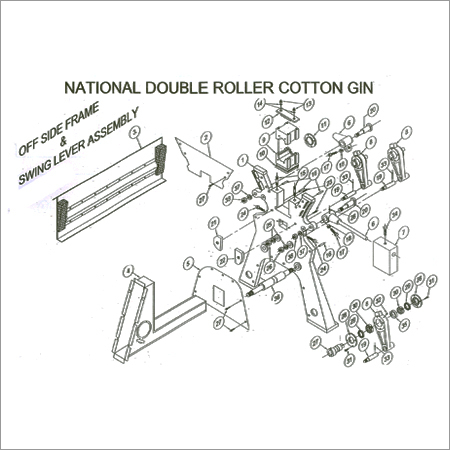

Off Side Frame Assembly
With the help of our expert professionals, we manufacturer, export, trade and supply superior grade Off Side Frame & Swing Lever Assembly. This assembly is manufactured by our experts using quality approved raw materials keeping in mind the industry norms. These acknowledged for its precise design, compact design, corrosion resistance and high tensile strength. This product is available in different specifications to meet the exact needs of clients.
| Sr. No | Part No. | Description | |
| Extra Long Model | Jumbo Model | ||
| 1 | 1 | 1 | C.I. Main Frame |
| 2 | 138 | 138 | Upper Panel Cover - Off Side/ Gear Side |
| 3 | EL 139 | 139 | Hopper Sheet |
| 4 | EL 137 | 137 | Seed Channel - Left/ Right |
| 5 | 136 | 136 | Lower Panel Cover - Left / Right |
| 6 | EL 10 | 10 | Weight Lever Assembly with M.S. Rod - Off Side |
| 7 | EL 29 | 29 | Weight - Off Side |
| 8 | 17 | 17 | Swing Lever Assembly - Off Side |
| 9 | EL 21 | 21 | Beater Bearing Housing - Off Side |
| 10 | 22 | 22 | Packing Plates for Beater Bearing Housing |
| 11 | EL 23 | 23 | Beater Bearing Housing Cover - Off Side |
| 12 | 24 | 24 | Clamping Strip for Beater Bearing Housing |
| 13 | 26 | 26 | Hex. Nut - 3/4" |
| 14 | 25 | 25 | Split Washer - 3/4" |
| 15 | 7 | 7 | M.S. Beater Stud - 3/4" x 4" Long |
| 16 | 8 | 8 | Supporting Pin |
| 17 | 20 | 20 | Hex. Head Bolt - 5/8" x 4" Long |
| 18 | 19 | 19 | Hex. Nut - 5/8" |
| 19 | 14 | 14 | Swing Lever Pin - Off Side |
| 20 | 11 | 11 | Weight Lever Pin - Off Side |
| 21 | 5A | 5A | Side Segment Plate (Kaan Plate) - L.H.S. |
| 22 | 5 | 5 | Side Segment Plate (Kaan Plate ) - R.H.S. |
| 23 | 6 | 6 | Hex. Head Bolt - 3/8" x 1 - 1/4" Long |
| 24 | 9 | 9 | Hex. Socket Head Cap Screw - 1/2" x 3-1/2" Long |
| 25 | 15 | 15 | Plain Washer - 1" |
| 26 | 16 | 16 | Hex. Nut - 1" |
| 27 | 31 | 31 | Hard. & Ground Swing Lever Clutch - Off Side |
| 28 | 32 | 32 | Swing Lever Cover |
| 29 | 33 | 33 | Oil Seal for Swing Lever Cover - 55 - 80 -6 |
| 30 | 34 | 34 | Ball Bearing for swing Lever - 6011 |
| 31 | 50 | 50 | C.S.K. Screw - 3/16" x 1/2" Long |
| 32 | 28 | 28 | Grease Nipple - 1/8" Straight |
| 33 | 18 | 18 | Swing Lever Resting Pin |
| 34 | 30 | 30 | Hex. Head Bolt - 5/8" x 1 - 1/2" Long |
| 35 | 35 | 35 | Distance Piece for Swing Lever |
| 36 | EL 117 | 117 | M.S. Tie Bar |
| 37 | 12 | 12 | Plain Washer - 7/8" |
| 38 | 13 | 13 | Hex. Nut - 7/8" |
